Earthing Accesories

Earthing Accesories
Earthing Accesories
Product Code : 05
Product Description

Being a trustworthy name in market, we are manufacturing and supplying good range of Earthing Accessories. Offered range is used in residential buildings, offices, hotels and commercial buildings for giving safety from thunder and lightening during storm. Offered accessories are available in different specifications to suit the requirement of clients. Entire range is designed & manufactured under strict and approved quality control procedure by following latest technology. Earthing Accessories are available to our clients at market leading price range.

Features:

  • High tensile strength
  • Shock-proof
  • Long functional life

Further Details:

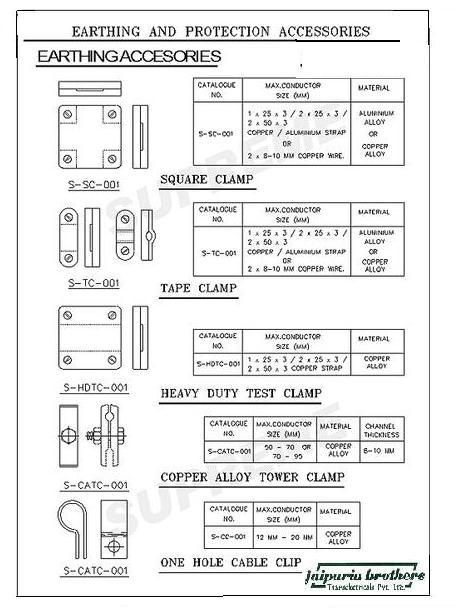

Earthing Accessories-

There are four type of earthing materials -
1. Galvanized Earth Plates
2. G.I Earthing Strips
3. G.I Earthing Wire 8 g
4. G.I Stay Wire 7/10

1. Galvanized Earth Plates
12" x 12" x
12" x 12" x
15" x 15" x
18" x 18" x
24" x 24" x
24" x 24" x
2. G.I Earthing Strips
Size W/PM
25 x 3 mm 800 gm
25 x 6 mm 122 gm
32 x 6 mm 1800 gm
40 x 6 mm 2000 gm
50 x 6 mm 2500 gm
3. G.I Earthing Wire 8 g
4.G.I Stay Wire 7/10
G. I Pipe with funnel
5 Ft. long 3/4" dia.
8 Ft. long 40 mm dia


Earthing
S. No Item Copper Aluminium G.I
  Weight of conductor
  Kg. MTR.
1. No.14 SWG Wire 0.028 - 0.0254
2. No. 12" 0.049 0.0162 0.043
      (0.0162 (6 mm²) 0.043
3. No.8" 0.1155 0.02703 (10 mm²) 0.012
4. No.6" 0.1668 - 0.1456
5. No.4" 0.243 - 0.224
6. No.;2 0.344 0.0945 (35 mm) 0.305
7. 25 x 3 mm Flat 0.670 0.202 0.590
8. 32 x 6 mm Flat 1.715 0.518 1.510
9. 50 x 6 mm Flat 2.680 0.810 2.360
10. 600x600x6 mm Thick Plate 19.30 5.83 17.00
11. 600x600x12 mm thick Plate 38.60 11.66 34.00
  Recommended Earth Conductors for Motors
1. Upto15HP 12 Swg. 6mm² 8 Swg
2. Upto 20 to 30 HP 8 Swg. 10 mm² 4Wsg.
3. Upto 35 to 50 HP 4 Swg. 35mm² 25x3 mm flat
4. Above 50 HP 25x3 25x3 32x6
    mm Flat mm Flat mm Flat


Earthing Materials Details
G.I Cond Size Area MM² Nominal Dia mm Approx. Weight Kg/M Approx Resistance Ohm /M
14 SWG 3.24 2.03 0.026 0.0433
12 SWG 5.48 2.64 0.044 0.02565
10 SWG 8.35 3.26 0.067 0.0162
8 SWG 12.97 4.06 0.104 0.01063
4 SWG 27.27 5.89 0.218 0.00505
25 x 3 mm 75.00 -- 0.600 0.0017
50 x 6 mm 300.00 -- 2.400 0.0033



L.T Stay Set's : 6' x 5/8" Rod, Plate Bow, Themble Complete Plate Sizs 6" 6" x 5 mm. Thickness G.I 450.00 Painted 300.00
2/5 H.T Stay 6' x 3/4" Rod, Plate Bow, Thimble complete, Plate size 12" x 12" x 5 mm. Thickness 650.00 565.00
